This article includes instructions to set up and operate your Racebox Mini S with the LITPro-GPS Lap Timer App.
1. Download the LITPro - GPS Lap Timer App from the App Store or Google Play
- Download the LITPro-GPS Lap Timer App for your preferred platform
- Create a new LITPro account or login to an existing
2. Operating the Mini S
Power On - Connect to your Mini S via the LITPro App to power it on
Start/Stop Tracking - You must start and stop tracking from the LITPro App. There are no physical buttons on Mini S
To Power Off - Mini S will power off at the pre-selected time duration, or disconnect your Mini S to power it off
Understanding the LEDs
Solid Blue LED - The device is powered on and connected to the LITPro App
Blinking Blue LED - The device is disconnected from the LITPro App and is in recording mode, but with no GPS signal
Blinking Green LED - The device has been disconnected from the LITPro App and is in recording mode
Solid Red LED - The device is charging
Solid Green LED - The device is completely charged
Blinking Red LED - Out of memory
Caring for your Mini S
- Mini S IS SPLASH PROOF, BUT NOT WATERPROOF Splashes of water won't hurt, but do not power-wash or allow sustained exposure to water.
- Charge device regularly - Make sure it is powered off before connecting it to the charger for long periods. This will extend your battery life.
3. Mounting the Mini S

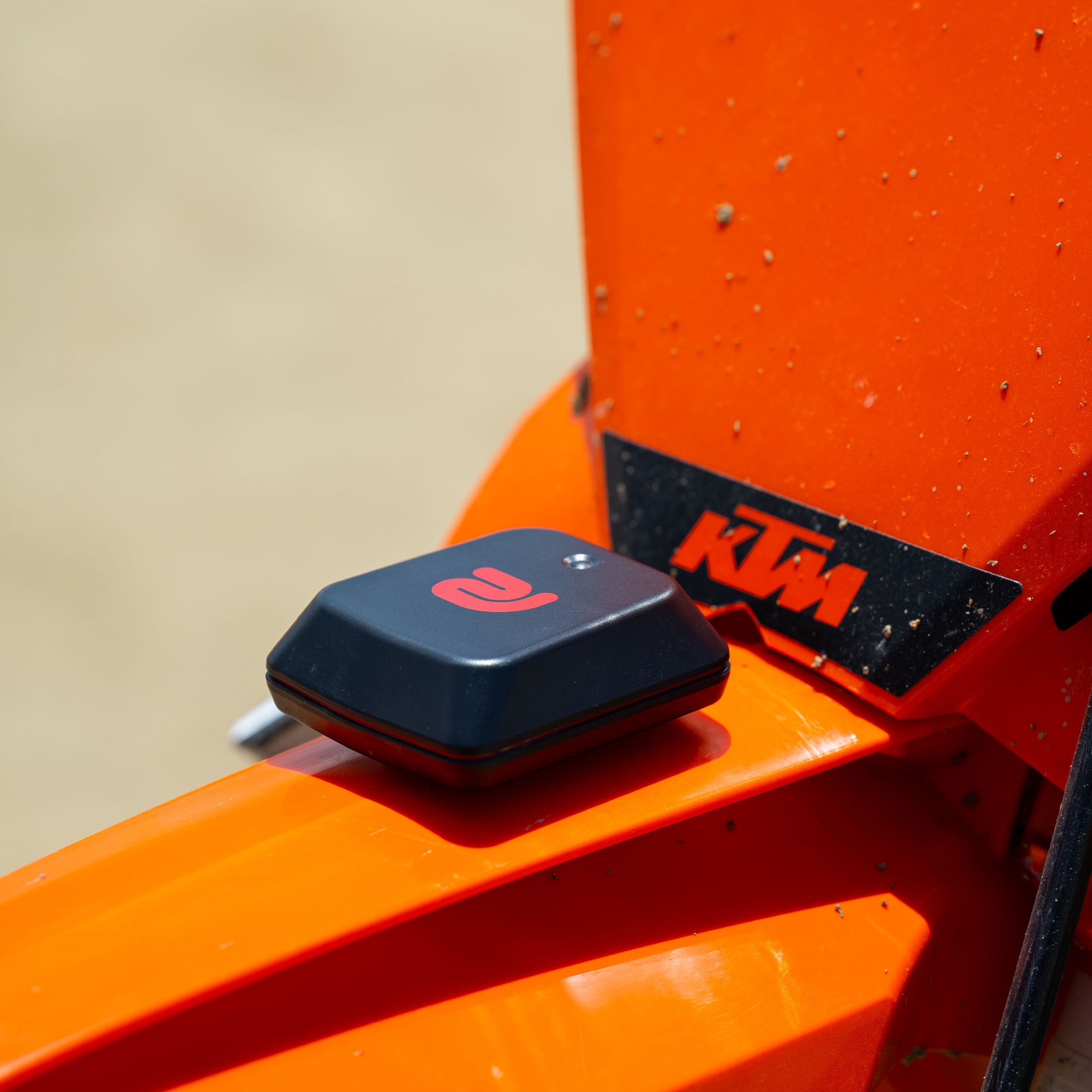

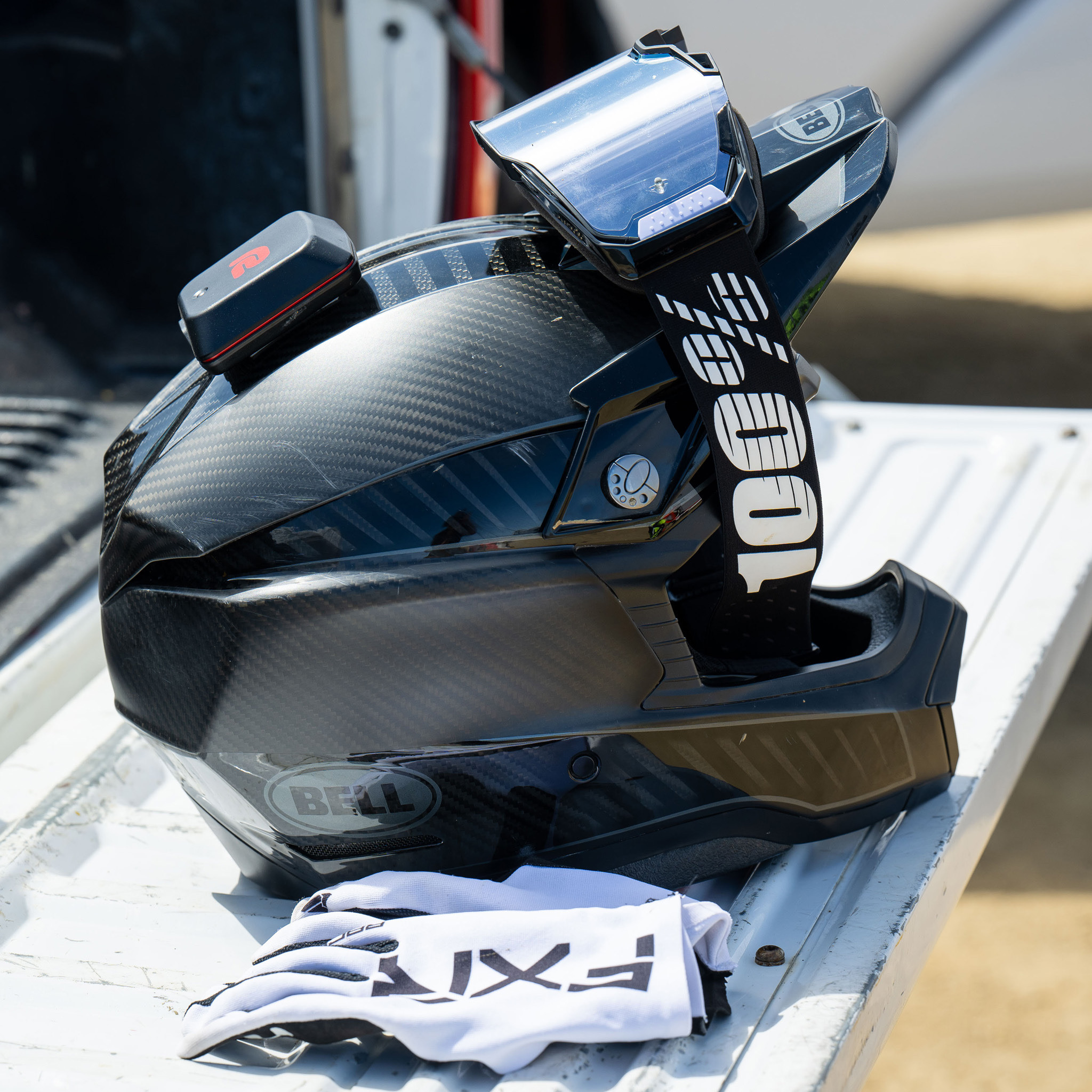

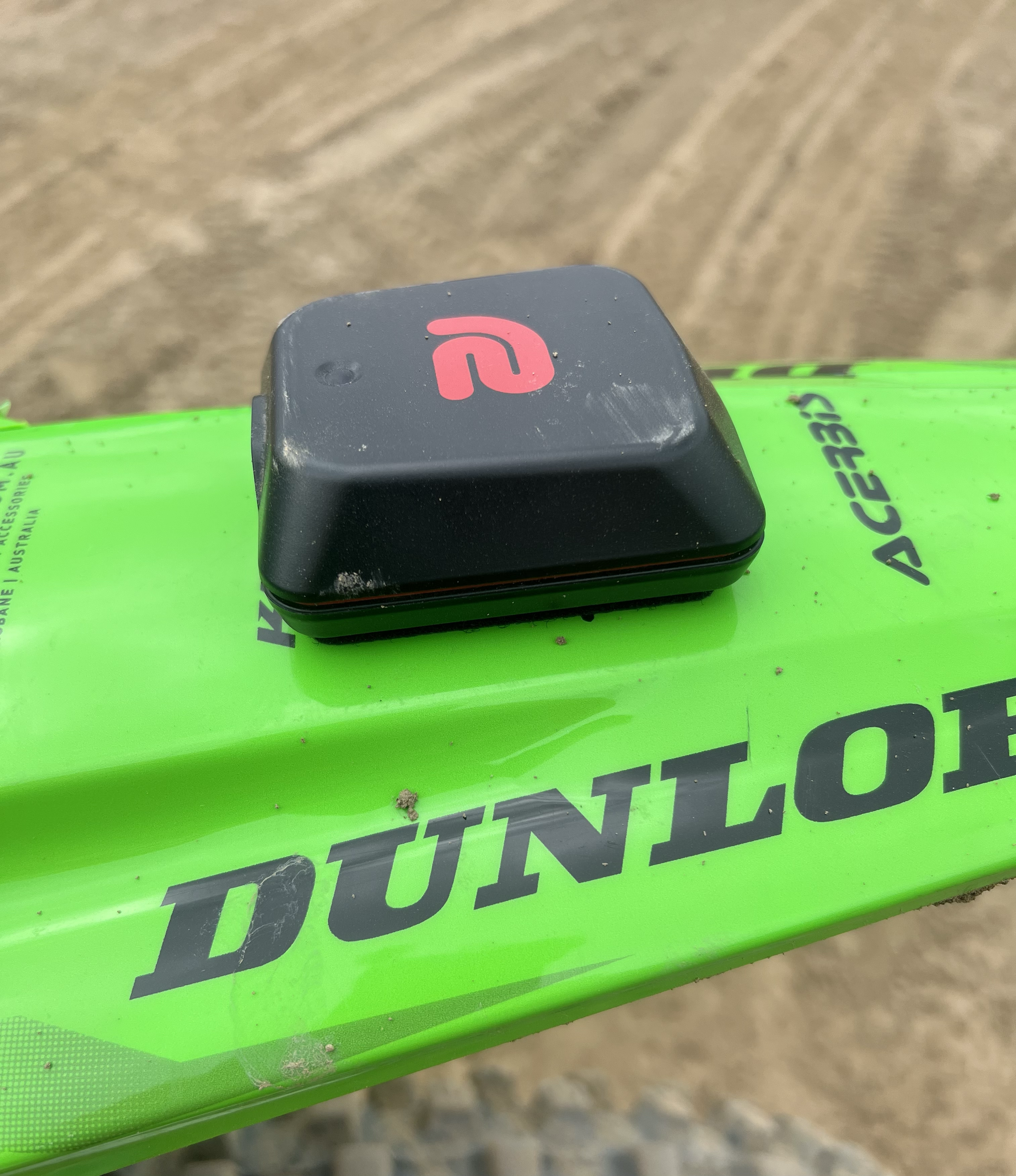

- Ideal mounting locations for the Mini S are the top of your helmet or on the front/rear fender - wherever you have a flat surface to adhere to that ideally positions the Mini S with the top facing the sky. Mounting the Mini S to the triple clamp or behind the number plate of a motocross bike may work, but you'll sacrifice some of the accuracy of the device.
IMPORTANT TIP: Clean the mounting surface with 95% rubbing alcohol, contact cleaner, or equivalent before applying the adhesive tape to any surface. This will ensure good adhesion. If you fail to do this, the Mini S will likely fall off, get damaged, or be lost.
Do NOT mount the Mini S to a motocross bike using the 1/4 20 screw mounting hole on the bottom of the Mini S. The vibration on the chassis of motocross bikes is too high for the plastics and will break off.
- Remove the adhesive backing and place the velcro on your helmet or fender. Wait 15 min before riding to ensure a good adhesive bond
- IMPORTANT TIP: You are responsible for mounting your RaceBox Mini S securely, especially on non-flat surfaces.
4. Your First Session
You'll need to pair your Mini S with the LITPro App before recording your first session.
Follow these steps to pair your Mini S with the LITPro App
- Open the LITPro App and login to your account

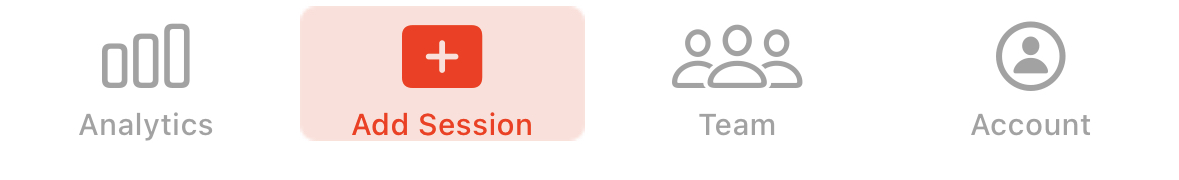

- Tap the Add Session tab at the bottom of the screen
- Tap pair a new GPS receiver

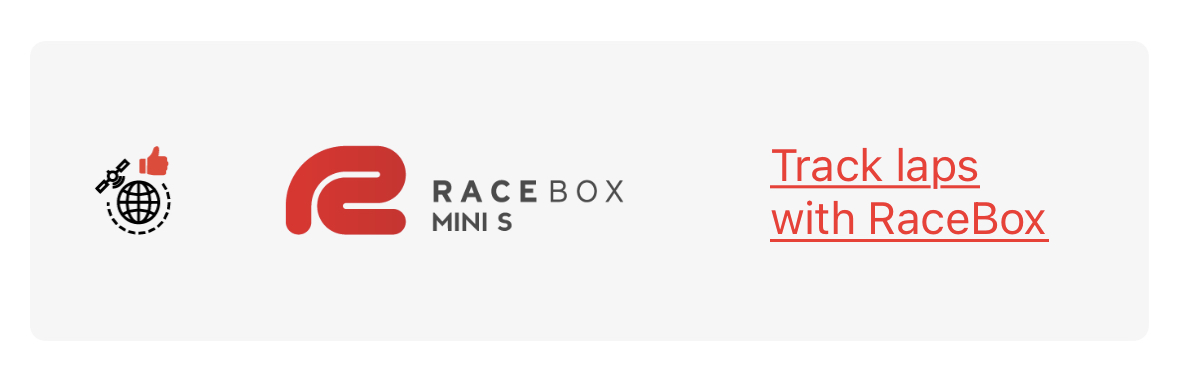

- Tap track laps with RaceBox

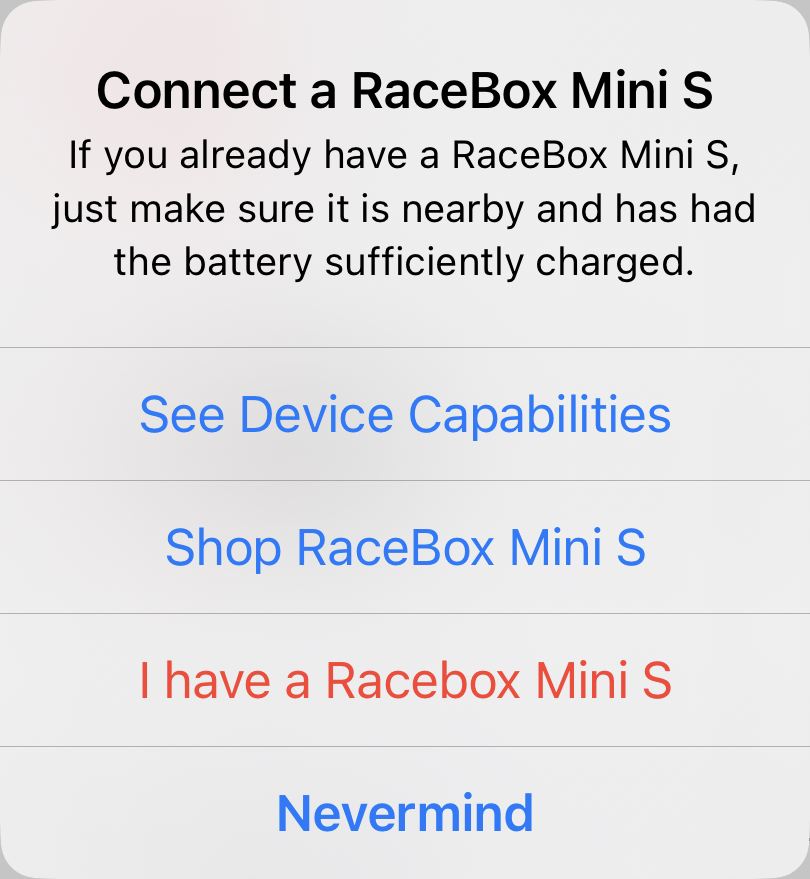

- Tap I have a RaceBox Mini S
- Hold your phone within 3 inches (7cm) from the Racebox Mini S you wish to pair with

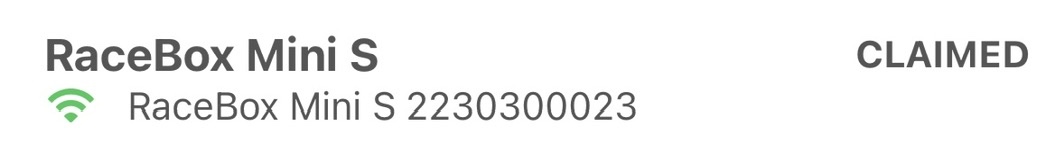

- Tap RaceBox Mini S (with serial number) that appears on screen with green signal strength bars to the left indicating it is close enough to your mobile phone to be paired.
*Please note every device has its own unique serial number. - Your Mini S has now been paired with your account
Recording your first session
- Wherever the Mini S is mounted (helmet, fender, or other), it should have a clear view of the sky in all directions
- When you are ready to begin riding, tap the add session tab at the bottom of the screen

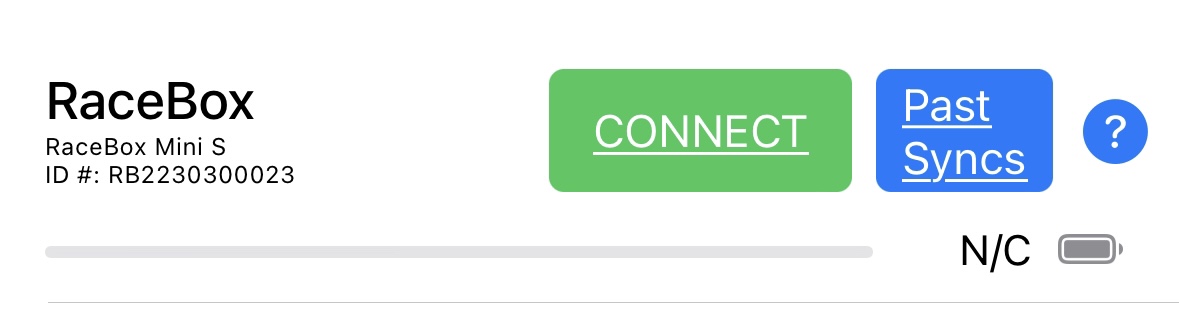

- Tap the green connect button
- Select, either Manual or Smart mode (see more about Manual and Smart modes below)

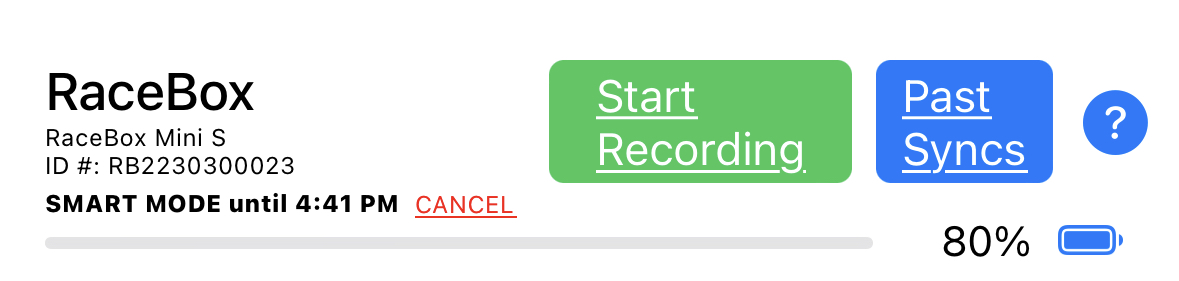

- Tap Start Recording to begin recording
- Go ride
Syncing your session and reviewing data
- Open the LITPro App
- Tap the Add Session tab

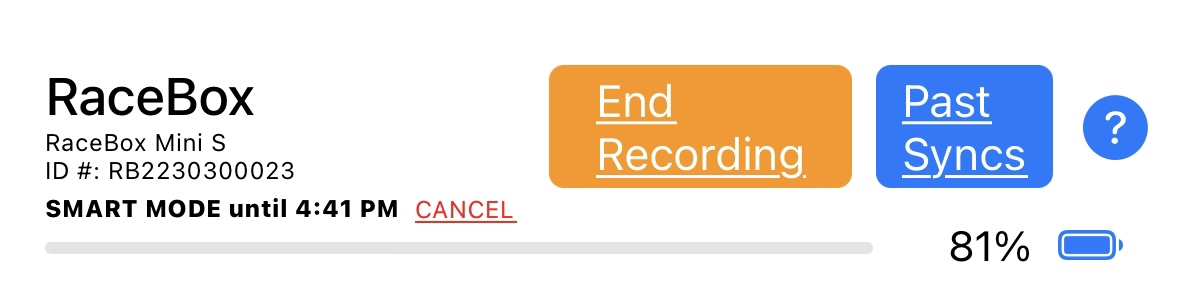

- Tap End Recording
- Your Mini S will automatically sync with the LITPro App
- When your sync is complete, LITPro will automatically suggest any existing valid track configuration for you to apply
- We suggest applying a valid track configuration that our system presents
- Considerations for creating a new configuration might be
- If no track configs exist that match your riding you can create a new one
- If you don't want to create a track config you can use the auto-generated "QUICK-Session" type (that has no permanent finish line location)
- Pay attention to prompts about showing up on leaderboards.
- Considerations for creating a new configuration might be
- After applying a track config, tap the "Analytics" tab to review your data
About Manual Mode
In manual mode you the RaceBox will only record data when you've explicitly started or ended recording from the LITPro App. This means if you connect and start recording from the app it will continue to record even if you stop moving for long periods of time and will continue recording until it is stopped or runs out of memory (around 2 hours and 10 minutes later). This mode is ideal for practicing gate drops, or any other kind of activity where recording at a dead stop is important.
In manual mode the LITPro app will still automatically split your sessions when you pause for more than 5 minutes or more (meaning if you stop moving).
The Mini S can store a maximum of 2 hours and 10 minutes of actual ride time before running out of memory. When the Mini S is out of memory it will stop recording until you sync it. Sync time for a completely full MINI S is around 5 minutes total.
About Smart Mode
In smart mode your RaceBox will automatically pause recording if you stop moving for more than 5 minutes, and automatically begin recording again when you resume moving. This means that you can start smart mode when you arrive at the track, and end it when you are done for the day and you don't have to worry about running out of memory or having a long sync time.
In smart mode the LITPro app will still automatically split your sessions when you pause for more than 5 minutes or more (meaning if you stop moving).
The Mini S can store a maximum of 2 hours and 10 minutes of actual ride time before running out of memory. When the Mini S is out of memory it will stop recording until you sync it. Sync time for a completely full MINI S is around 5 minutes total.
To trigger a recording to start in Smart Mode:
- You must be moving at least 3MPH (4.8KPH)
- You must have a GPS fix (at least 4 GPS satellites must be visible to the RaceBox)
To trigger a recording to pause in Smart Mode:
- You must stop moving (less than 3MPH or 4.8KPH) for 30 seconds
To trigger a session to split in Smart Mode:
- You must stop moving (less than 3MPH or 4.8KPH) for 5 minutes or more
